The market for thermal spray coatings and other advanced materials has taken a strong upward trend. The restriction on the use of hexavalent chrome, increasing efforts in corrosion, thermal, and wear resistance control have accelerated the introduction of thermal spray coatings.
These hard to grind materials require engineered flexible diamond abrasive solutions to keep productivity at the right pace, costs under control, and servicing within expectations.
Pulp, paper & printing industries, hot rolling mills, earthmoving equipment, oil, gas, mining, drilling industry and hydraulic.

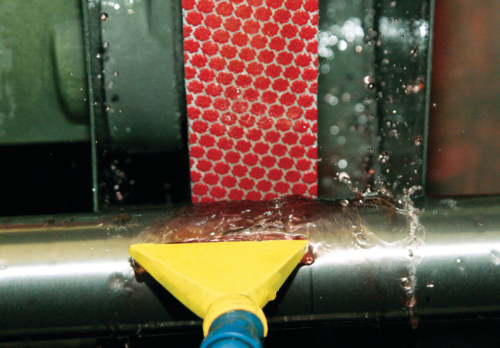

For wet grinding and polishing of cylinders with hard coatings, especially those used in the pulp, paper & printing industries. Including chrome replacement with HVOF tungsten carbide. Hydraulic and shock absorbers plus rolls and cylinders used for hot rolling in the metal industry.
Centerless grinding machines, tool post grinding machines and superfinishing machines.
Contact us: sales@kgs.swiss.
For all our locations, adresses and phone numbers, please refer to the page 'Locations'.
.jpg)
INCREASE PRODUCTIVITY WITH THE 2 IN 1 GRIND AND POLISH BELT
KGS Telum® CH-resin belts, specifically engineered to replace both metal bond diamond wheels and super-finishing systems. Combines the accuracy of rigid tools (bonded wheels); with the speed, consistency & ease of use of a flexible diamond belt system and for many applications, can replace the need for diamond film finishing.
.png)

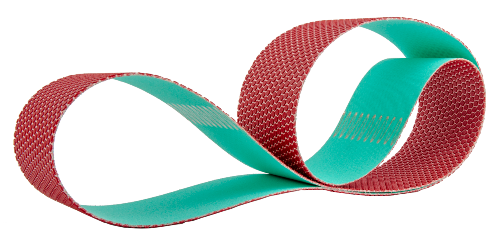

The KGS Telum® CH is a versatile belt used for grinding and polishing / finishing purposes. The strong flexible backer and the precision-engineered diamond grain configuration enables the Telum® CH belt to become a market leader in fast dimensioning and surface finishing. Especially designed with long-lasting durability for hard materials and coatings like HVOF. For softer steel types the Telum® CH CBN is an excellent alternative choice for your process.
Your future benefits:
- Same results every time
- 2 in 1 application (Grinding and polishing)
- Efficient - low-cost solution
- Increase in production
- Continuous performance
- Lower grinding force than wheels
- Save 95% by not having to invest in new machines
.jpg)
To download our KGS Telum® CH product leaflet with specific application information, please click here to download the PDF.
Specially designed for fast grinding operations with high stock removal, we offer 3 product types which are ideal:

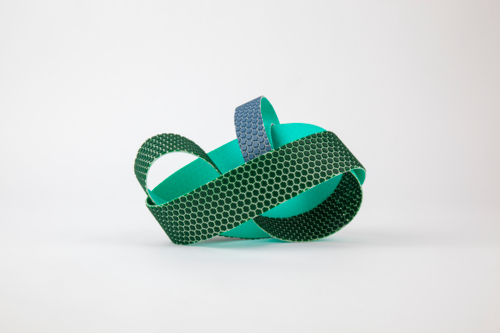

Increased shear and tear strength. The belts have an exceptional long life - smooth running with consistent finishing. For heavy stock removal. Start your dimensioning step of your operation with KGS Telum® H or Flexis® 21. These nickel belts are engineered for fast grinding operations requiring high stock removal. Easy to use and still providing consistent and accurate results. Depending on the Ra finish your product requires, these products provide the right preparation for a final finish and polish step with the resin bond Telum® CH product. Increase productivity, keep your costs under control and maintain your service level when finishing hard-to-grind materials – like thermal spray coatings.
Belts have an aggressive grinding action with free cutting, high temperature resistance and improved coolant flow. KGS Telum® H and Flexis®-21 belts are the ideal solution for dimensioning your hard-coated rolls. Not only will you achieve more consistent and predictable results, you will also reduce the costs of your precision parts due to a higher throughput with our KGS systems.
Individual resin “island” with CBN minerals positioned in a a thick layer of hard resin, bonded on a strong thick backer material. For wet grinding of tubes, cylinders, shafts, bars, shock absorbers, hydraulic rams made of hard to grind alloys, or thermal spray coatings. Telum® CH Ferrzon® (CBN) belts are specifically designed for stripping old thermal spray coating during the refurbishment process. These belts, are suited for either removing hard coatings and calibrating the metal surface below the coating, removing chrome plated coatings in preparation for replacement HVOF coating or re-chroming.
To download our "KGS Telum® CH Ferrzon®, Telum®-H and Flexis®-21 product leaflet with specific application information, please click here to download the PDF.
KGS DIAMOND is the world’s leading manufacturer of flexible diamond abrasives. KGS flexible diamond abrasive products satisfy the most demanding customer requirements for belts, discs, sheets and hand pads, bringing quality, productivity and innovation to the customer.
Founded in Switzerland in 1952, KGS has more than 20 sales and distribution offices in Europe, North America, Middle East, Singapore, India, China and Australia as well as six manufacturing sites located in Switzerland, The Netherlands, Hungary, Portugal, United Arab Emirates and India. Read more...
